As a market leader and key player in suspended platform&cradle sector, since its establishment, we focus on facade solutions, high rise building cleaning&maintenance. Our team has long lasting experience and knowledge in design and production of suspended platform and related components. With technique creation, strict inspection,and perfect after-sales services, we are getting more and more domestic and overseas market share.
ZLP Suspended platform / Cradle / Gondola
Specification :
1.Type: zlp 630 & zlp800 & zlp 1000
2.Surface finished: Hot galvanized & aluminum alloy
3.Lifting height: 100m , 300m maximum
4.HS Code: 84289090
5.Certificate: ISO9001 & CE
6.Warranty : The whole machinery is for one years, some main components are 6 years
7.We can also customize for you
Technical parameters:
|
Model |
zlp630 |
zlp800 |
zlp1000 |
|
Material of platform |
Steel & Aluminum alloy |
|
Rate loading capacity |
630kg |
800kg |
1000kg |
|
Length of platform |
6m |
7.5m |
7.5 |
|
Safety lock |
LS30 |
|
Hoist Model |
LTD63 |
LTD80 |
LTD80(S dirve ) |
|
Loading quantity (20 gp) |
9 |
8 |
7 |
|
Counter weight |
25kg*40 |
25kg*40 |
25kg*40 |
|
Diameter of wire rope |
8.3mm |
8.6mm |
8.6mm |
|
Voltage |
220v/380v/415v 50/60hz 3 phase or single phase |
Parts List of Complete Suspended Platform / Cradle / Gondola
|
NO. |
Parts Name |
Quantity |
Description |
|
1 |
Working platform |
3 |
The length of work platform include 1m,2m,3m,1.5m,2.5m
The work platform can be made in any combination based on customer's requirement .
|
|
2 |
Hoist |
2 |
LTD 63 & LTD80 Surface finished : hot galvanized |
|
3 |
Safety lock |
2 |
LS30 |
|
4 |
Suspension machanism |
2 |
Surface finished : hot galvanized |
|
5 |
Control panel |
1 |
Along with hoist |
|
6 |
Limit position switch |
2 |
|
|
7 |
Limit position plate |
2 |
|
|
8 |
Wire rope |
100m*4 |
4*31SW- FC- 8.3 &8.6&9.1 |
|
9 |
Electric cable |
1 bundle |
3*2.5+2*1.5YC-5 |
|
10 |
|
|
|

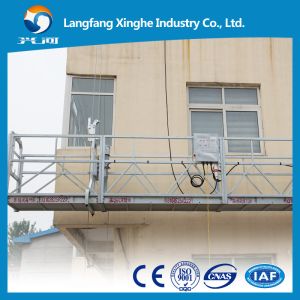

zlp630 suspended platform / window cleaning equipmemt / cradle / gondola Images
|
